Load Cell Amplifier

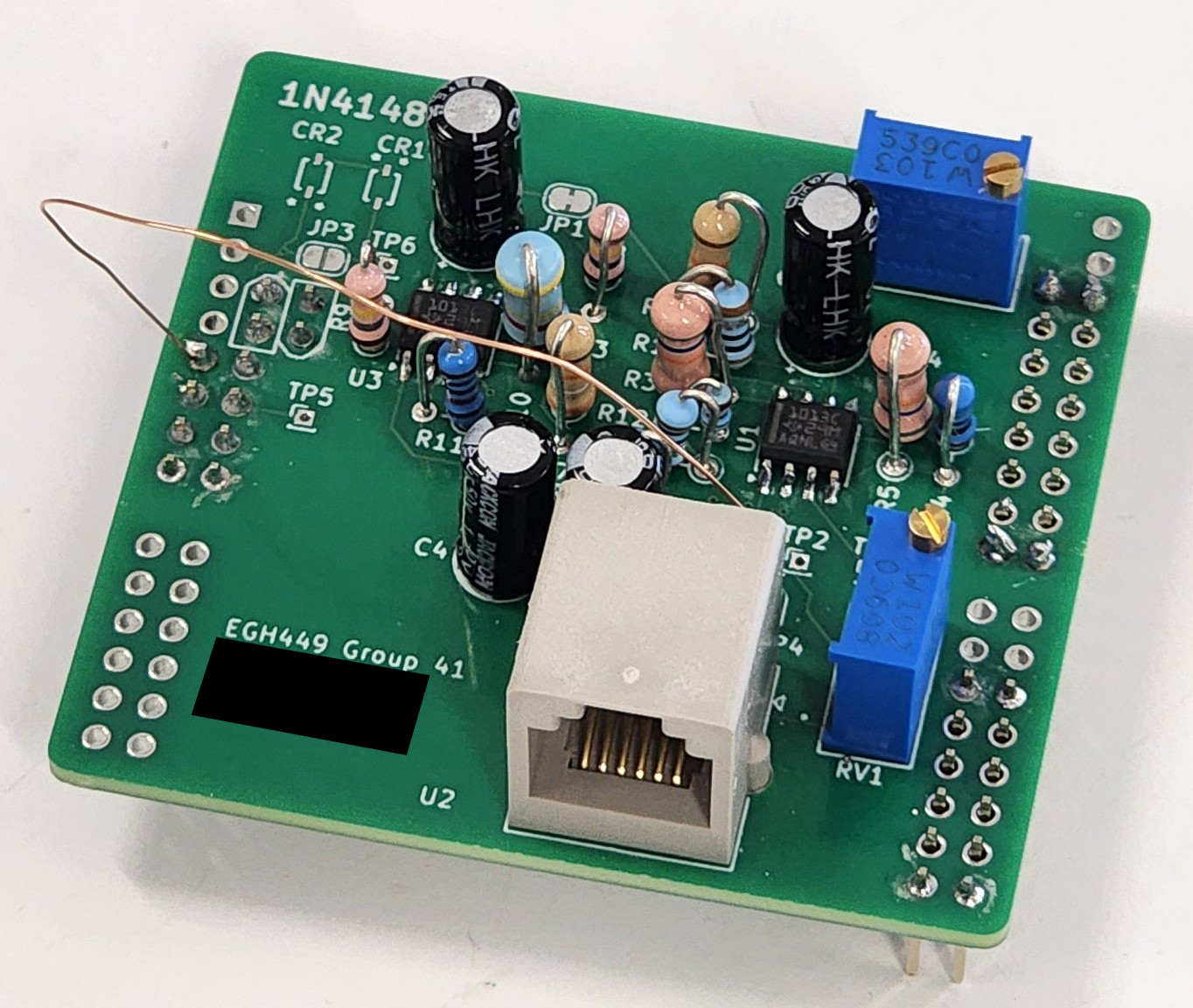

Working in a group to design and manufacture a signal amplification PCB circuit.
One of the final electrical projects I completed at University was to build a signal amplifier circuit.
Design of the circuit was based on a provided example circuit at the start of the semester, which progressed to a breadboard design, backed up by LT spice simulations, before progressing to a PCB.
PCB design was performed with the open source PCB design software KiCAD, and a handful of faculty provided part footprints (the RJ12 in particular).
